Outdoor Tank Alarm (High Water Alarm) - 15 foot Mechanical Float

SKU: SP-4000

Price: $132.99

The SP-4000 alarm system is designed to monitor liquid levels in sump basins, holding tanks, lift stations tanks and many other non-potable water and wastewater applications. Comes individually boxed with Cable tie and Instruction sheet.

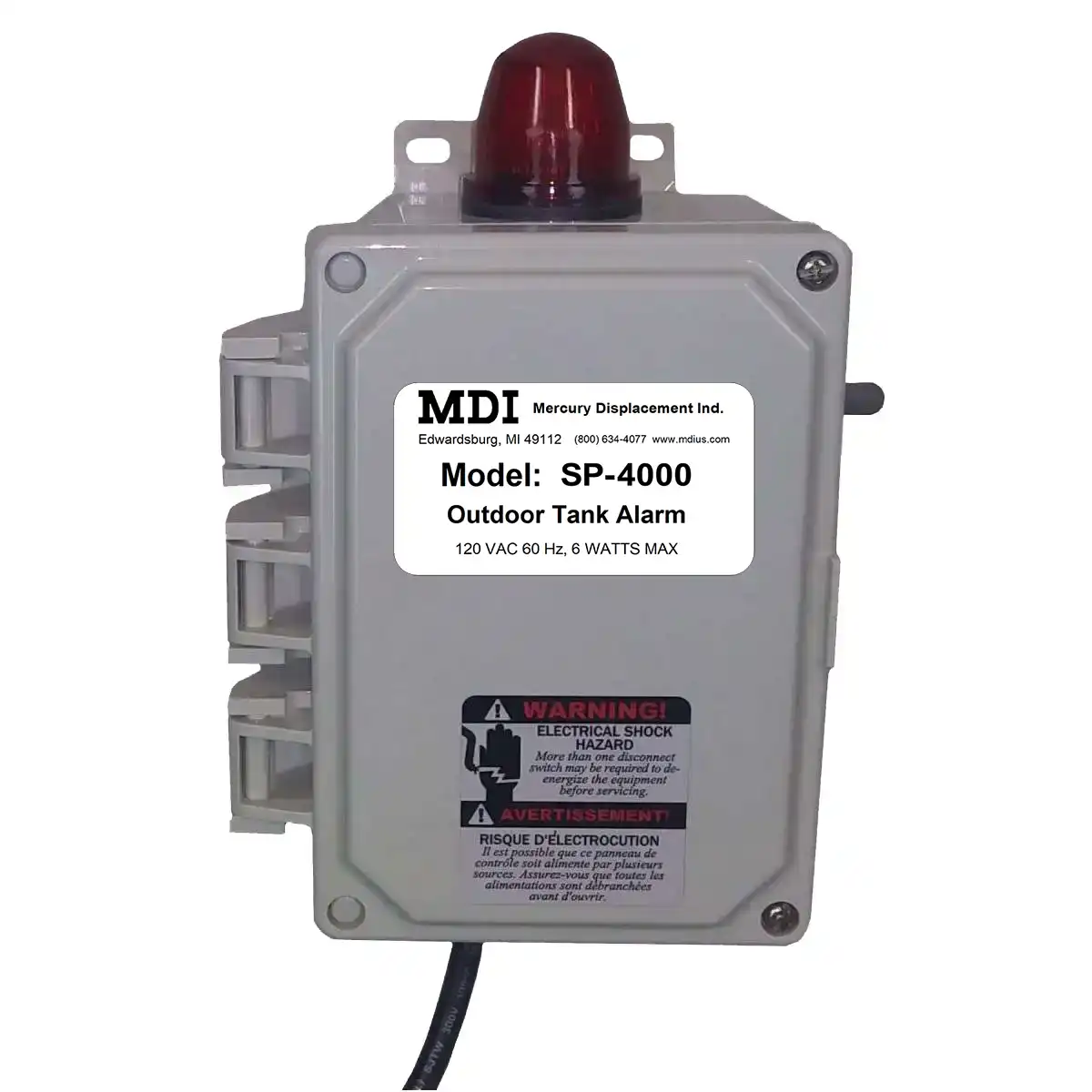

This alarm comes in a Type 4X non-metallic enclosure with external mounting feet and a gasketed door for outdoor use. It has a large red illuminating beacon, piezo, with Test and Silence toggle switch.

The SP-4000 is design to sound an audible piezo horn and illuminate the red beacon light to notify of an alarm situation. There is a silence switch to turn the piezo horn off while fixing the alarm (the red alarm light will remain on until the alarm conditions are remedied).

  • Features
  • Alarm test and horn silence toggle with auto reset
  • Complete alarm includes a (Mechanical) float switch with mounting strap and 15 foot cord.
  • Mechanical Float Switch NF2OW1500

Spec Sheet

Manufacturer: MDI Sewage Products

Weight: 5 lb

Delivery: 1 - 6 weeks

  • Specifications
  • Voltage 120 VAC, 60 Hz
  • Enclosure Type 4X non-metallic enclosure rated for indoor or outdoor use 8" X 4 1/2" X 4 1/4" (NEMA 3R)
  • Alarm Horn 85 Decibels at 10 feet
  • Power Cord 6 feet 120 VAC (NEMA 5-15P)
  • Features
    • Red "Alarm On" Beacon
    • Alarm test and horn silence button with auto reset
  • Screw Terminals 1 & 2 120 VAC for Alarm Float
    • DO NOT APPLY ELECTRICAL POWER
  • Float Switch (Included)
  • Mechanical Float NF2OW1500​
  • Cable 15 foot length, 16 Ga. 2 conductor, SJOW chlorinated polyethylene jacket
  • Float 2.63" Dia X 4.63"
  • Float Material ABS
  • Switch 35 Deg operating angle, hermetically sealed mechanical ball switch
