MIDI Relays (IEC Contactors) - 60 AMPS Resistive Relay - 3 Pole - AC Control

SKU: CC40SA120

  • 60 AMPS @ 690 VAC Resistive
  • 3-Pole (NO) Main Contact
  • Finger Proof Design
  • DIN-Rail or Screw Mountable
  • 1NO1NC Auxiliary Contacts Built-In as Standard
  • Up to 1,800 Operations Per Hour
  • Lug Termination Type

CC40 Spec Sheet

Manufacturer: Carlo Gavazzi

Weight: 1.22 lb

Delivery: 1 - 6 weeks


Please use the "Request More Info" form


  • Current (AC1) 60 AMPS @ 690 VAC 50/60Hz Resistive
  • Motor Loads Single-Phase
    • 110~120 VAC @ 3 HP
    • 220~240 VAC @ 7.5 HP
  • Motor Loads 3-Phase
    • 200~208 VAC @ 15 HP
    • 220~240 VAC @ 15 HP
    • 440~480 VAC @ 30 HP
    • 550~600 VAC @ 30 HP
  • Motor Current (AC3)
    • 200~240 VAC @ 40 AMPS (11 kW)
    • 380~440 VAC @ 40 AMPS (18.5 kW)
    • 500~550 VAC @ 32 AMPS (22 kW)
    • 690 VAC max @ 23 AMPS (22 kW)
  • Control Voltage 120 VAC 50/60 Hz

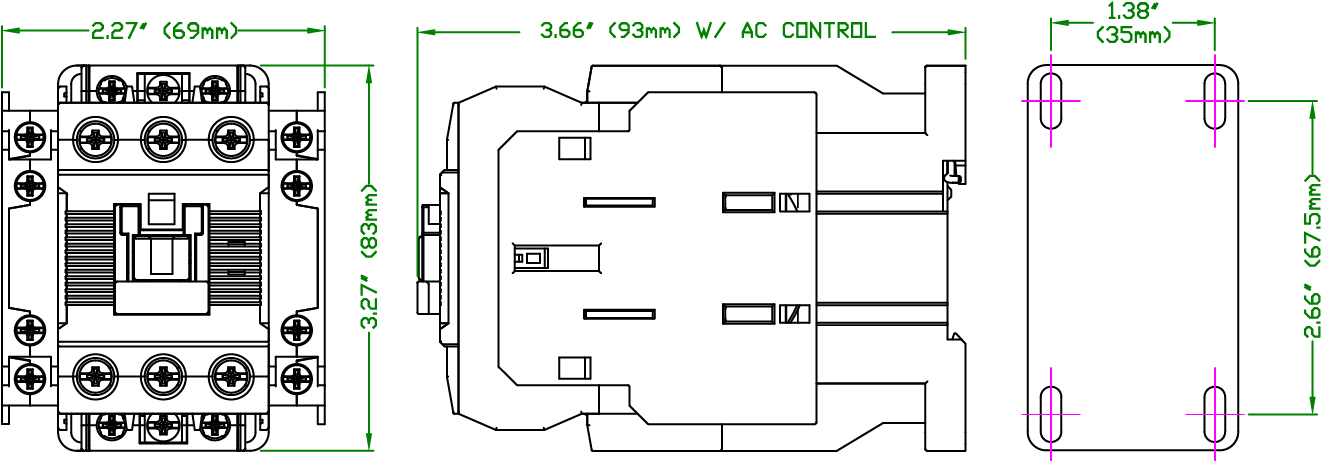

  • Basic Dimensions 1.38" x 2.66" x 3.66" (35mm x 67.5mm x 93mm)
  • Accessories Auxiliary Contacts Standard 1NO1NC
  • Output Terminal M5 Screw Clamp
  • NEMA Size 1

cULus Product

CSA

CE Product
