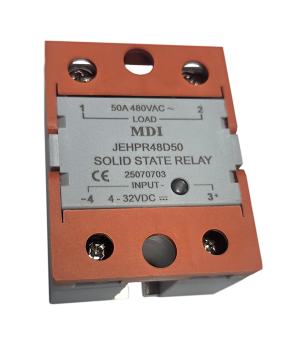

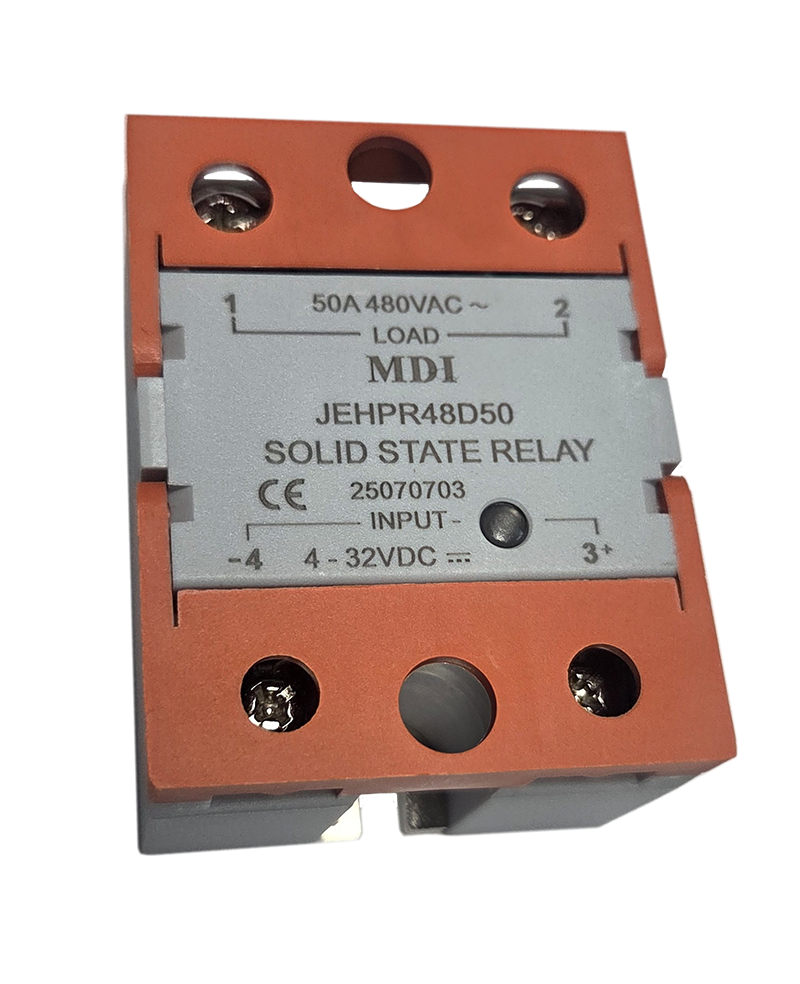

HPR Solid State Relay - 50 AMP - Single Pole - DC Control
SKU: JEHPR48D50
Price: $44.49
JEHPR is a high power solid state relay, with 4 - 32 VDC input control voltage, with output current 50A and load voltage of 480 VAC. SCR output provides high dv/dt capability more than 500v/µs. The relays provide 4000VAC opto-isolation between input and output. Encapsulating with epoxy resin. Outline dimension is 2.30" x 1.80" x 1.04" (58.6mm x 45.7mm x 26.5mm).
- Photoelectric isolation
- LED status indicator

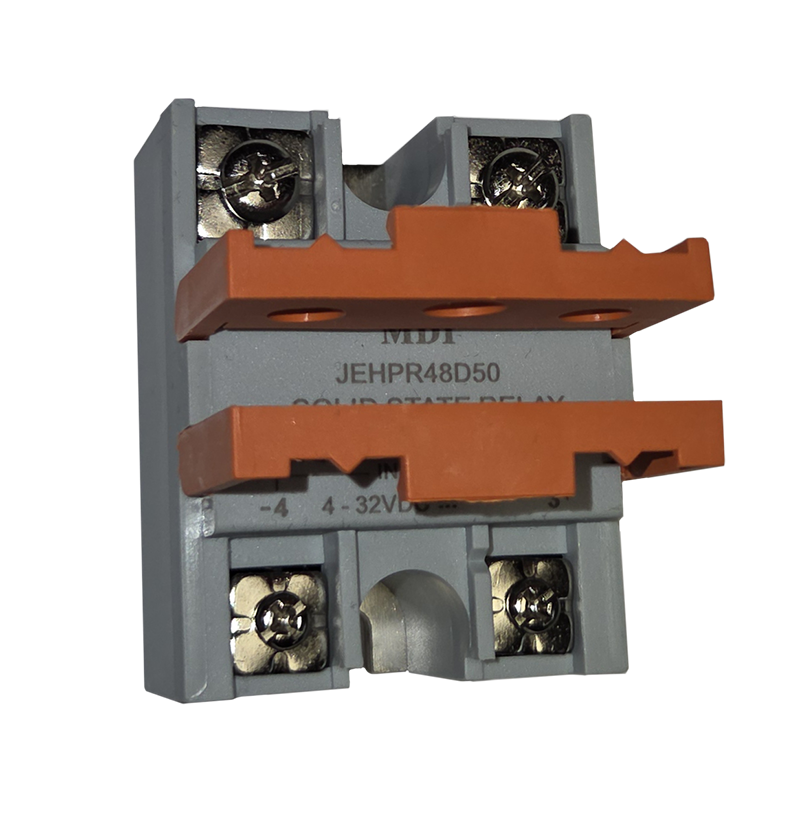

- Removable protective cover
- Dielectric strength 4000V
- Zero-cross switching
- Panel mount
- DC Control
- SCR output
Manufacturer: MDI Relays & Switches
Weight: 0.5 lb
Delivery: 1 - 6 weeks
- Carlo Gavazzi RM1A48D50
- Ta=77°F (25°C)
- Input Accepts 24 to 2 x 12 AWG (.2 to 3.3mm²)
- Control Voltage Range 4 - 32 VDC
- Max Turn-On Voltage 4 VDC
- Max Turn-Off Voltage 1 VDC
- Max Input Current 25 mA
- Max Reverse Protection Voltage -32 VDC
- Ta=77°F (25°C)
- Output Accepts 20 to 2 X 8 AWG (.518 to 8.4mm²)
- Load Voltage Range 48 - 530 VAC
- Max Transient Voltage 1200 Vpk
- Load Current Range 50 Arms
- Max Surge Current (10 ms) 700 Apk
- Max l2t for fusing (10 ms, A2S) 1250
- Max Off-State Leakage Current 10 mA
- Max On-State Voltage Drop 1.7 Vrms
- Min Power Factor 0.5
- Max Turn-On Time 1/2 Cycles + 1 ms
- Max Turn-Off Time 1/2 Cycles + 1 ms
- Frequency Range 47 - 63 Hz
- Min Off-State DV/DT 500 V/µs
- Ta=77°F (25°C)
- Dielectric Strength (50/60 Hz)
- Input, Output to Base 2500 VAC, 1 min
- Input to Output 4000 VAC, 1 min
- Insulation Resistance 1000 MΩ (500 VDC)
- Max Capacitance (Input to Output) 8 pF
- Operating Temperature -86°F (25°C) - 176°F (25°C)
- Storage Temperature -86°F (25°C) - 212°F (25°C)
- Ambient Humidity 45% - 85% RH
- Unit Weight Approximately 95g
