Non-Clog - 4" Discharge - 2 to 7.5 HP - 3" Solids

SKU: CP4SE Series

  • PDF Files
  • Catalog Sheet
  • Installation Manual
  • Head
  • Up to 60'
  • Flow
  • 620 GPM
  • Discharge
  • 4" 125 Pound Horizontal Flange
  • Liquid Temperature
  • 104°F (40°C) Continuous
  • 140°F (60°C) Intermittent Operation
  • Volute
  • Cast Iron ASTM A-48 Class 30
  • Motor Housing
  • Cast Iron ASTM A-48 Class 30
  • Seal Plate
  • Cast Iron ASTM A-48 Class 30
  • Impeller
  • Design
    • 2 Vane Semi-Open with Vanes on Back Side
  • Material
    • Cast Iron ASTM A-48 Class 30
  • Shaft
  • 416 Series Stainless Steel
  • Square Rings
  • Buna-N
  • Paint
  • Air Dry Enamel
  • Water Based
  • Seal
  • Design
    • Dual Mechanical with Oil Filled Chamber
  • Material
    • Silicon Carbide with Viton Type 01 Outer Seal
    • Carbon Ceramic with Buna-N Type 01 Inner Seal
    • Stainless Steel Hardware
  • Hardware
  • 300 Series Stainless Steel
  • Cord Entry
  • 40' Cord
  • Epoxy Sealed Housing
  • Secondary Pressure Grommet for Sealing and Strain Relief
  • Motor
  • NEMA B
  • 3-Phase
  • 230 & 460 Volts @ 60 Hz
  • 1,750 RPM
  • Oil Filled
  • Class F insulation
  • Requires Overload Protection to be Included in Control Panel
  • Optional Equipment
  • Additional Cord
  • Tungsten Carbide Seal
  • Slide Rail Coupling

Manufacturer: Champion Pump

Stock Quantity: In Stock

Delivery: Ships in 2-3 Business Days

Please use the "Request a Quote" form

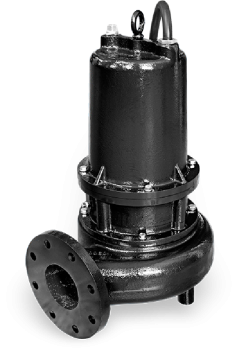

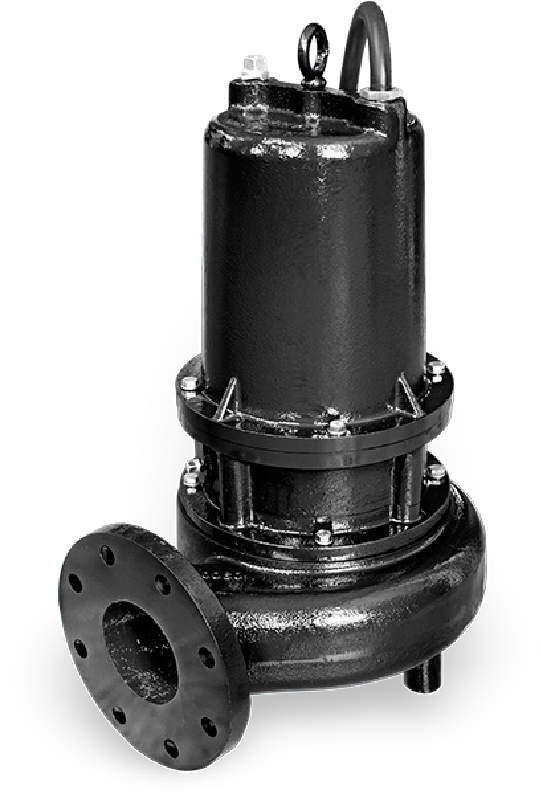

Champion Non-Clog CP4NC Series

Click to Enlarge

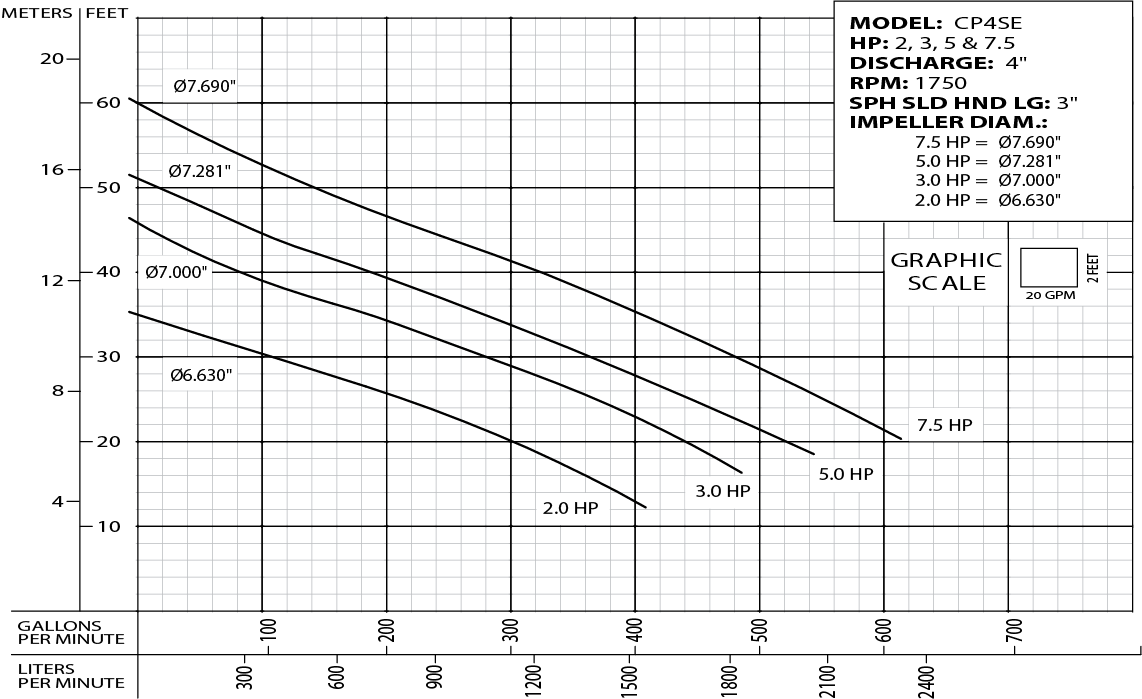

Champion Non-Clog CP4SE Series Pump Curve

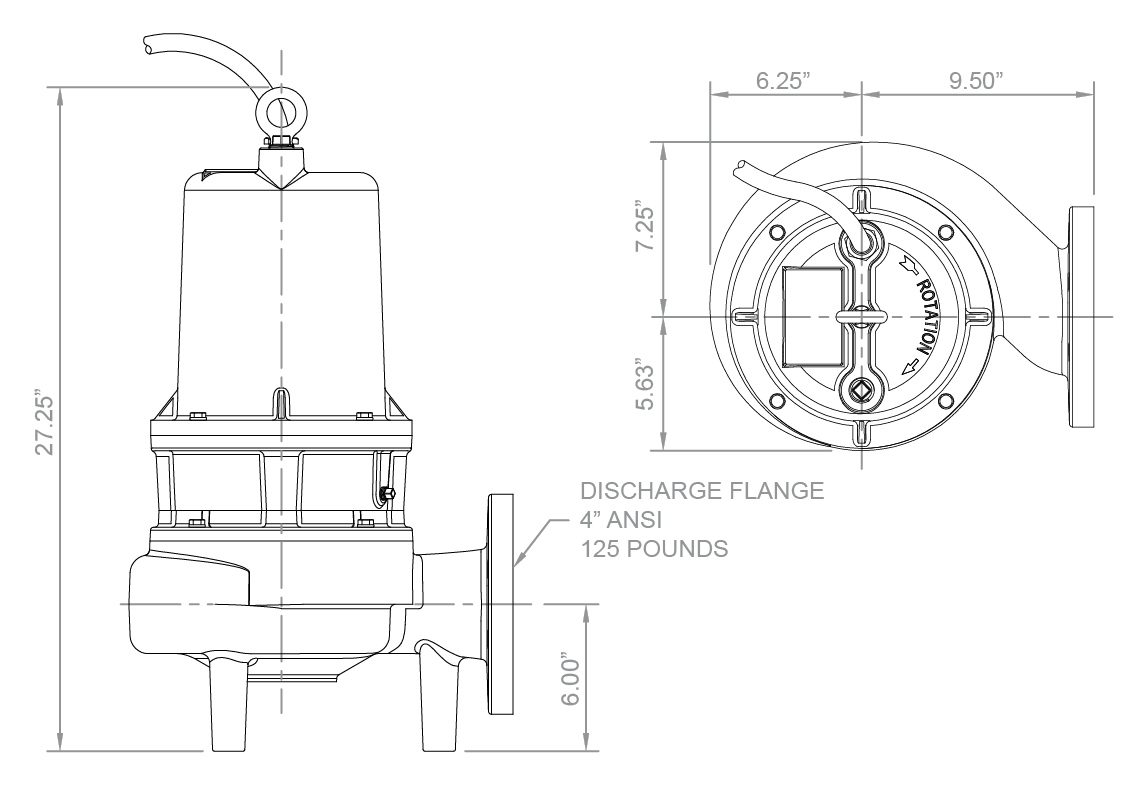

Champion Non-Clog CP4SE Series Dimensions
Model HP Voltage Phase RPM Max.
AMPS		 Locked
Rotor Amps		 NEMA
Code		 Cord
Size		 Cord
Type		 Cord
Length		 Pump
Weight
CP4SE203DS 2 230 3 1,750 14.3 40 F 14/4 STOW 40' 200 LBS
CP4SE204DS 2 460 3 1,750 7.2 20 F 14/4 STOW 40' 200 LBS
CP4SE303DS 3 230 3 1,750 15.9 49.5 H 14/4 STOW 40' 205 LBS
CP4SE304DS 3 460 3 1,750 8 24.8 H 14/4 STOW 40' 205 LBS
CP4SE503DS 5 230 3 1,750 22.1 63.6 E 14/4 STOW 40' 210 LBS
CP4SE504DS 5 460 3 1,750 11 31.8 E 14/4 STOW 40' 210 LBS
CP4SE753DS 7.5 230 3 1,750 24.6 105 G 10/4 STOW 40' 225 LBS
CP4SE754DS 7.5 460 3 1,750 12.3 52.5 G 10/4 STOW 40' 225 LBS
