Non-Clog - 4" Discharge - 2.8 to 5 HP - 3" Solids

SKU: CP4NC-SS Series

  • PDF Files
  • Catalog Sheet
  • Specification Sheet
  • Installation Manual
  • Head
  • Up to 47'
  • Flow
  • 500 GPM
  • Discharge
  • 4" 125 Pound Horizontal Flange
  • Liquid Temperature
  • 104°F (40°C) Continuous
  • Volute
  • Cast Iron ASTM A-48 Class 30
  • Motor Housing
  • Cast Iron ASTM A-48 Class 30
  • Seal Plate
  • Cast Iron ASTM A-48 Class 30
  • Impeller
  • Design
    • 2 Vane Open with Vanes on Back Side
  • Material
    • Cast Iron ASTM A-48 Class 30
  • Shaft
  • 416 Series Stainless Steel
  • Square Rings
  • Buna-N
  • Paint
  • Air Dry Enamel
  • Water Based
  • Seal
  • Design
    • Inboard
    • Single Mechanical
    • Oil Filled chamber
  • Material
    • Silicon Carbide
    • Buna-N Elastomer
    • Stainless Steel Hardware
  • Hardware
  • 300 Series Stainless Steel
  • Cord Entry
  • 40' Cord
  • Sealed Against Moisture
  • Bearings
  • Upper
    • Single Row Ball
    • Oil Lubricated
    • For Radial Load
  • Lower
    • Single Row Ball
    • Oil lubricated
    • For Radial and Thrust Load
  • Motor
  • Single-Phase
    • NEMA L
    • Permanent Split Capacitor
    • 200/230 volts @ 60 Hz
    • 1,750 RPM
    • Oil Filled
    • Overload Protection in Motor
  • 3-Phase
    • NEMA B
    • 208/230 & 460 Volts @ 60 Hz
    • 1,750 RPM
    • Oil Filled
    • Requires Overload Protection to be Included in Control Panel
  • Optional Equipment
  • Additional Cord
  • Slide Rail Coupling

Manufacturer: Champion Pump

Stock Quantity: In Stock

Delivery: Ships in 2-3 Business Days

Please use the "Request a Quote" form

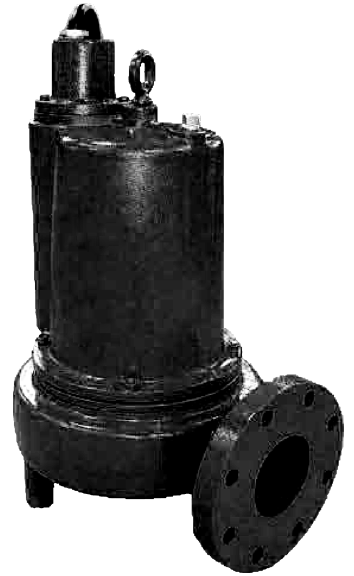

Champion Non-Clog CP4NC-SS Series

Click to Enlarge
Champion Non-Clog CP4NC-SS Series Pump Curve

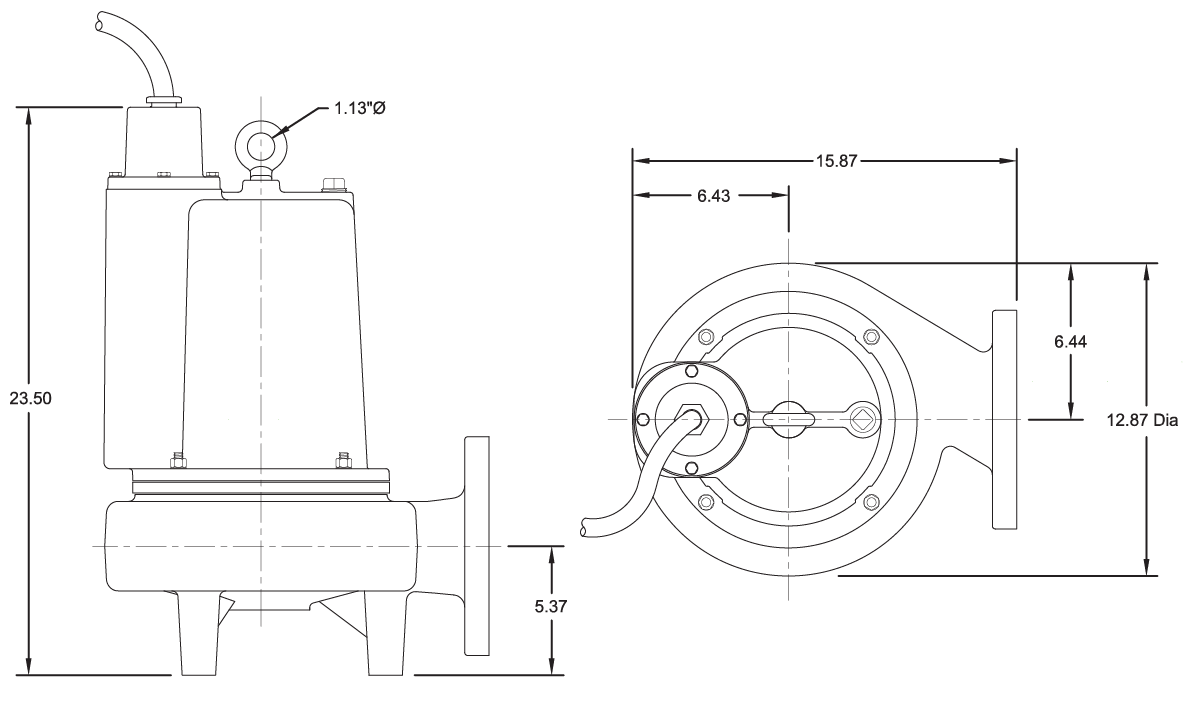

Champion Non-Clog CP4NC-SS Series Dimensions
Model HP Voltage Phase RPM Max.
AMPS		 Locked
Rotor Amps		 NEMA
Code		 Cord
Size		 Cord
Type		 Cord
Length		 Pump
Weight
CP4NC2824SS 2.8 200/230 1 1,750 12.63 23 A 10/3 SOW 40' 201 LBS
CP4NC3724SS 3.7 200/230 1 1,750 18.5 29 F 10/3 SOW 40' 201 LBS
CP4NC3734SS 3.7 208/230 3 1,750 14 50.8 D 10/4 SOW 40' 201 LBS
CP4NC3744SS 3.7 460 3 1,750 7 25.4 A 10/4 SOW 40' 201 LBS
CP4NC5024SS 5 200/230 1 1,750 28 59 D 10/4 SOW 40' 201 LBS
CP4NC5034SS 5 208/230 3 1,750 19 56 D 10/4 SOW 40' 201 LBS
CP4NC5044SS 5 460 3 1,750 9 28 B 10/4 SOW 40' 201 LBS
Buy Champion Pumps

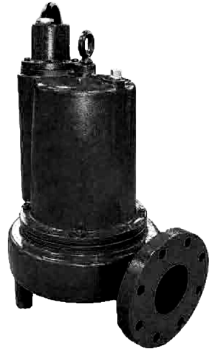

CP4NC-SS Series Pump

SSPMA Certified

Markings cCSAus
LR-235651
