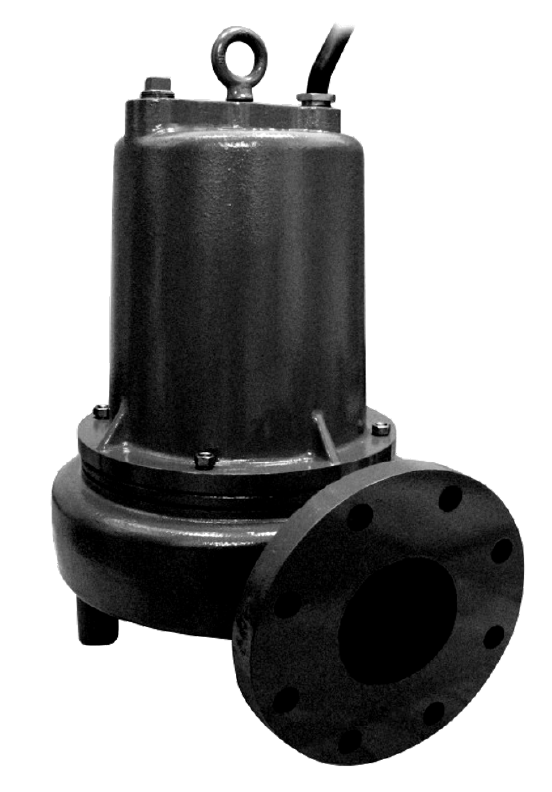

Non-Clog - 4" Discharge - 2.8 to 5 HP - 3" Solids - 3-Phase
SKU: CP4NC-SS Series
- Catalog Sheet
- Specification Sheet
- Installation Manual
- Up to 35'
- 400 GPM
- 4" 125 Pound Horizontal Flange
- 104°F (40°C) Continuous
- Cast Iron ASTM A-48 Class 30
- Cast Iron ASTM A-48 Class 30
- Cast Iron ASTM A-48 Class 30
- Design
- 2 Vane Open with Vanes on Back Side
- Material
- Cast Iron ASTM A-48 Class 30
- 416 Series Stainless Steel
- Buna-N
- Air Dry Enamel
- Water Based
- Design
- Inboard
- Single Mechanical
- Oil Filled Chamber
- Material
- Silicon Carbide
- Buna-N Elastomer
- Stainless Steel Hardware
- 300 Series Stainless Steel
- 40' Cord
- Sealed Against Moisture
- Upper
- Single Row Ball
- Oil Lubricated
- For Radial Load
- Lower
- Single Row Ball
- Oil lubricated
- For Radial and Thrust Load
- NEMA B
- 3-Phase
- 208/230 & 460 Volts @ 60 Hz
- 1,750 RPM
- Oil Filled
- Requires Overload Protection to be Included in Control Panel
- Additional Cord
- Slide Rail Coupling
Manufacturer: Champion Pump
Stock Quantity: In Stock
Delivery: Ships in 2-3 Business Days
Please use the "Request a Quote" form
| Model |
HP |
Voltage |
Phase |
RPM |
Max.
AMPS |
Locked
Rotor Amps |
NEMA
Code |
Cord
Size |
Cord
Type |
Cord
Length |
Pump
Weight |
| CP4NC2834SS |
2.8 |
208/230 |
3 |
1,750 |
8 |
35 |
A |
10/4 |
SOW |
40' |
201 LBS |
| CP4NC2844SS |
2.8 |
460 |
3 |
1,750 |
4 |
17.5 |
F |
10/4 |
SOW |
40' |
201 LBS |
