Non-Clog - 6" Discharge - 9 to 30 HP - 3" Solids
SKU: CP6NC Series
- Catalog Sheet
- Specification Sheet
- Installation Manual
- Up to 116'
- 2,000 GPM
- 6" 125 Pound Horizontal Flange
- 104°F (40°C) Continuous
- Cast Iron ASTM A-48 Class 30
- Bronze
- Cast Iron ASTM A-48 Class 30
- Cast Iron ASTM A-48 Class 30
- Design
- 1 Vane Closed with Vane on Back Side
- Material
- Cast Iron ASTM A-48 Class 30
- 416 Series Stainless Steel
- Buna-N
- Air Dry Enamel
- Water Based
- Design
- Double Mechanical
- Oil Filled Chamber
- Material
- Silicon Carbide Outboard Seal
- Carbon Ceramic Inboard Seal
- Buna-N Elastomer
- Stainless Steel Hardware
- 300 Series Stainless Steel
- Buna-N
- 25' Cord
- Sealed Against Moisture
- Upper
- Single Row Ball
- Oil Lubricated
- For Radial Load
- Lower
- Single Row Ball
- Oil Lubricated
- For Radial and Thrust Load
- NEMA B
- 3-Phase
- 230 & 460 Volts @ 60 Hz
- 1,150 RPM
- Oil Filled
- Requires Overload Protection to be Included in Control Panel
- Normally Open Included
- Normally Closed Included
- Impeller Trimming
- Additional Cord
- Tungsten Carbide Seal
- Slide Rail Coupling
Manufacturer:
Champion Pump
Stock Quantity: In Stock
Delivery: Ships in 2-3 Business Days
Please use the "Request a Quote" form
| Model |
HP |
Voltage |
Phase |
RPM |
Max.
AMPS |
Locked
Rotor Amps |
NEMA
Code |
Cord
Size |
Cord
Type |
Cord
Length |
Pump
Weight |
| CP6NC9096 |
9 |
230 |
3 |
1,150 |
26 |
162 |
F |
2/3 |
G |
25' |
897 LBS |
| CP6NC9046 |
9 |
460 |
3 |
1,150 |
13 |
81 |
J |
2/3 |
G |
25' |
897 LBS |
| CP6NC12096 |
12 |
230 |
3 |
1,150 |
36 |
162 |
D |
2/3 |
G |
25' |
902 LBS |
| CP6NC12046 |
12 |
460 |
3 |
1,150 |
18 |
81 |
F |
2/3 |
G |
25' |
902 LBS |
| CP6NC18096 |
18 |
230 |
3 |
1,150 |
50 |
232 |
C |
2/3 |
G |
25' |
917 LBS |
| CP6NC18046 |
18 |
460 |
3 |
1,150 |
25 |
116 |
F |
2/3 |
G |
25' |
917 LBS |
| CP6NC24096 |
24 |
230 |
3 |
1,150 |
64 |
290 |
C |
2/3 |
G |
25' |
961 LBS |
| CP6NC24046 |
24 |
460 |
3 |
1,150 |
32 |
145 |
E |
2/3 |
G |
25' |
961 LBS |
| CP6NC30096 |
30 |
230 |
3 |
1,150 |
82 |
364 |
C |
2/3 |
G |
25' |
1,008 LBS |
| CP6NC30046 |
30 |
460 |
3 |
1,150 |
41 |
182 |
E |
2/3 |
G |
25' |
1,008 LBS |

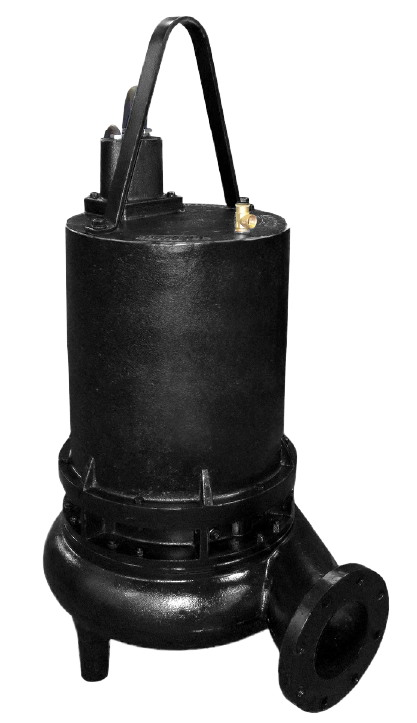

CP6NC Series Pump
LR-235651
