Non-Clog - 4" Discharge - 7.5 to 15 HP - 3" Solids

SKU: CP4NCH Series

  • PDF Files
  • Catalog Sheet
  • Specification Sheet
  • Installation Manual
  • Head
  • Up to 80'
  • Flow
  • 900 GPM
  • Discharge
  • 4" 125 Pound Horizontal Flange
  • Liquid Temperature
  • 104°F (40°C) Continuous
  • Volute
  • Cast Iron ASTM A-48 Class 30
  • Motor Housing
  • Cast Iron ASTM A-48 Class 30
  • Seal Plate
  • Cast Iron ASTM A-48 Class 30
  • Impeller
  • Design
    • 2 Vane Closed with Vanes on Back Side
  • Material
    • Cast Iron ASTM A-48 Class 30
  • Shaft
  • 416 Series Stainless Steel
  • Square Rings
  • Buna-N
  • Paint
  • Air Dry Enamel
  • Water Based
  • Seal
  • Design
    • Double Mechanical
    • Oil Filled Chamber
  • Material
    • Silicon Carbide Outboard Seal
    • Carbon Ceramic Inboard Seal
    • Buna-N Elastomer
    • Stainless Steel Hardware
  • Hardware
  • 300 Series Stainless Steel
  • Diaphragm
  • Buna-N
  • Cord Entry
  • 40' Cord
  • Secondary Pressure Grommet
  • Bearings
  • Upper
    • Single Row Ball
    • Oil Lubricated
    • For Radial Load
  • Lower
    • Single Row Ball
    • Oil Lubricated
    • For Radial and Thrust Load
  • Motor
  • NEMA B
  • 3-Phase
  • 230 & 460 Volts @ 60 Hz
  • 1,750 RPM
  • Oil Filled
  • Requires Overload Protection to be Included in Control Panel
  • Moisture Sensor
  • Normally Open Included
    • Requires Relay in Control Panel
  • Temperature Sensor
  • Normally Closed Included
    • Requires Relay in Control Panel
  • Optional Equipment
  • Additional Cord
  • Tungsten Carbide Seal
  • Slide Rail Coupling

Manufacturer: Champion Pump

Stock Quantity: In Stock

Delivery: Ships in 2-3 Business Days

Please use the "Request a Quote" form

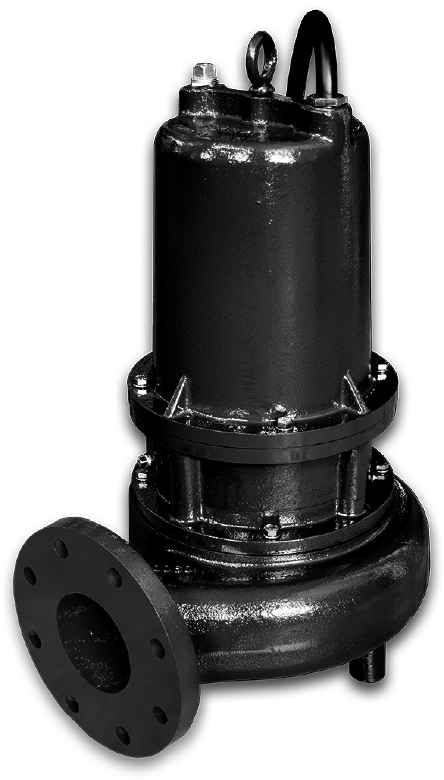

Champion Non-Clog CP4NCH Series

Click to Enlarge

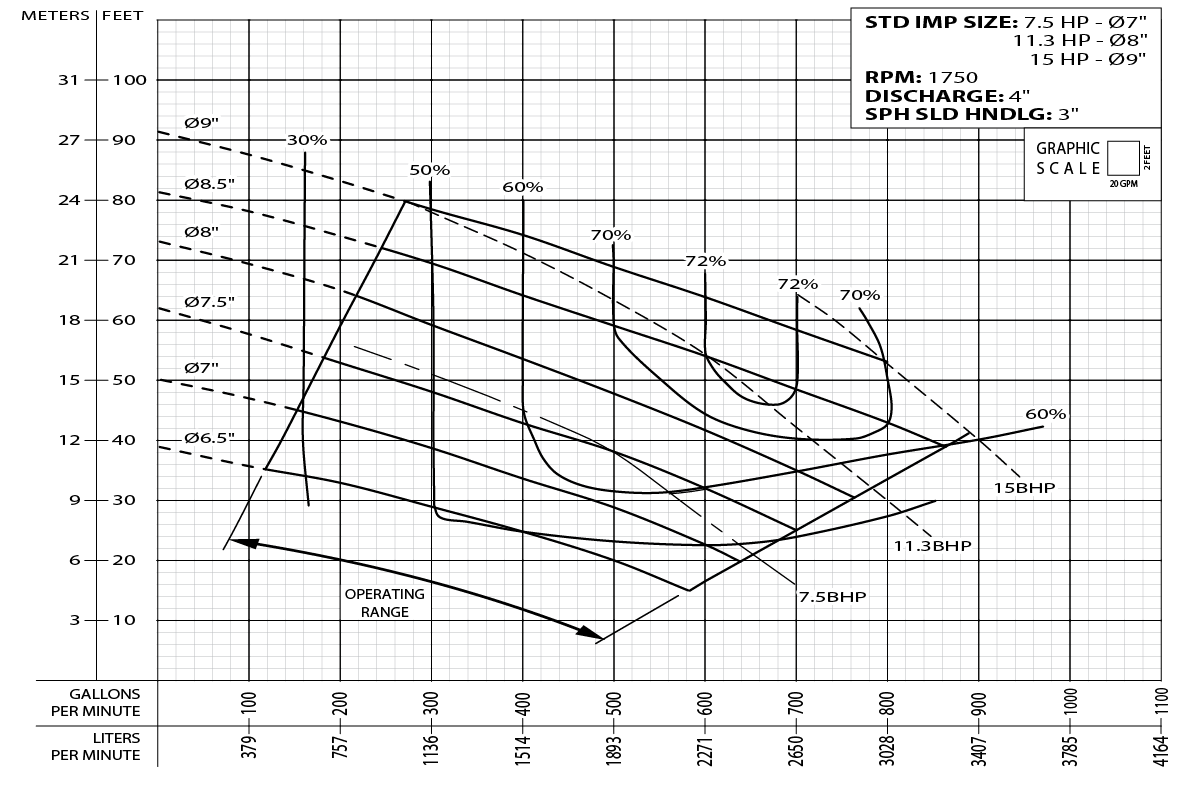

Champion Non-Clog CP4NCH Series Pump Curve

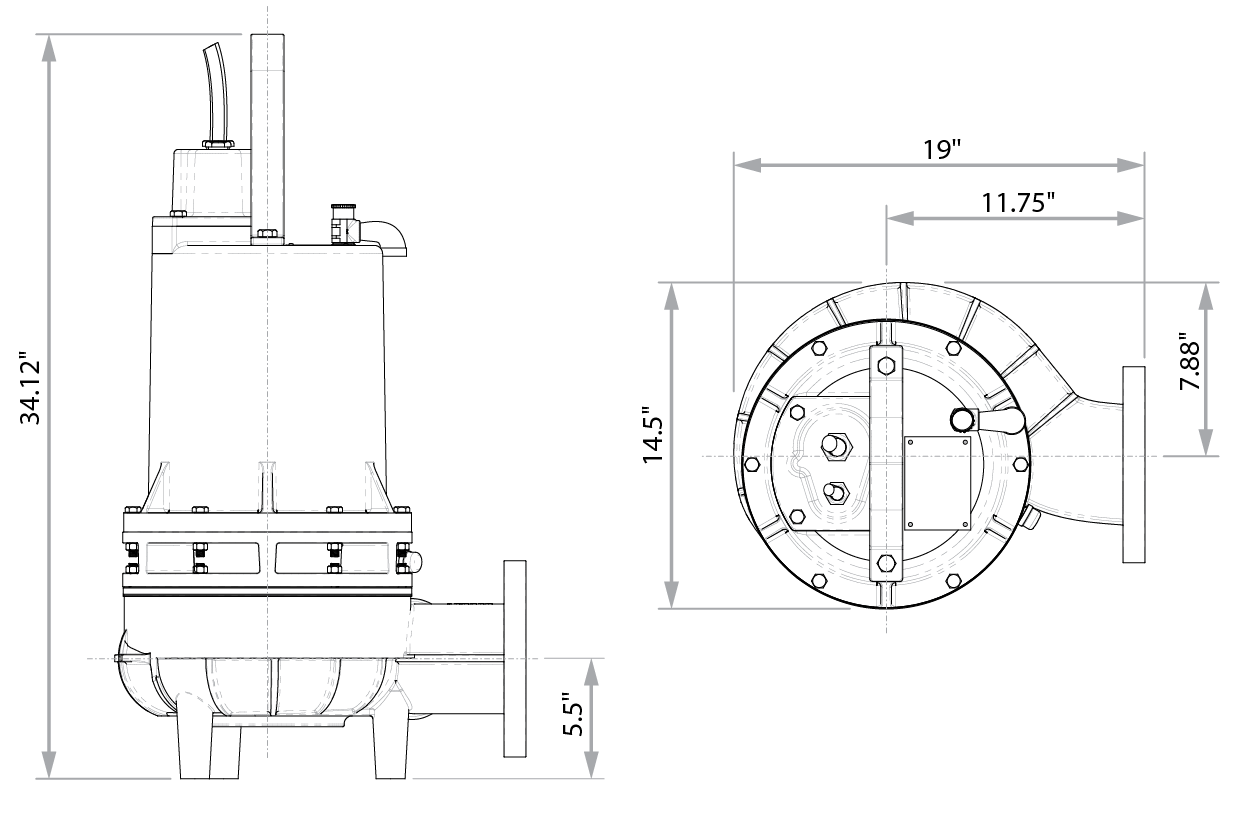

Champion Non-Clog CP4NCH Series Dimensions
Model HP Voltage Phase RPM Max.
AMPS		 Locked
Rotor Amps		 NEMA
Code		 Cord
Size		 Cord
Type		 Cord
Length		 Pump
Weight
CP4NC7534H 7.5 230 3 1,750 26.8 80 D 10/4 SO 40' 309 LBS
CP4NC7544H 7.5 460 3 1,750 13.4 80 D 10/4 SO 40' 309 LBS
CP4NC11334H 11.3 230 3 1,750 28 126 D 10/4 SO 40' 340 LBS
CP4NC11344H 11.3 460 3 1,750 14 63 D 10/4 SO 40' 340 LBS
CP4NC15034H 15 230 3 1,750 38 160 D 10/4 SO 40' 400 LBS
CP4NC15044 15 460 3 1,750 19 80 D 10/4 SO 40' 400 LBS
