Non-Clog - 4" Discharge - 4.5 to 15 HP - 3" Solids
SKU: CP4NC Series
- Catalog Sheet
- Specification Sheet
- Installation Manual
- Up to 100'
- 940 GPM
- 4" 125 Pound Horizontal Flange
- 104°F (40°C) Continuous
- Cast Iron ASTM A-48 Class 30
- Cast Iron ASTM A-48 Class 30
- Cast Iron ASTM A-48 Class 30
- Design
- 2 Vane Open with Vanes on Back Side
- Material
- Cast Iron ASTM A-48 Class 30
- 416 Series Stainless Steel
- Buna-N
- Air Dry Enamel
- Water Based
- Design
- Double Mechanical
- Oil Filled chamber
- Material
- Silicon Carbide Outboard Seal
- Carbon Ceramic Inboard Seal
- Buna-N Elastomer
- Stainless Steel Hardware
- 300 Series Stainless Steel
- Buna-N
- 40' Cord
- Secondary Pressure Grommet
- Upper
- Single Row Ball
- Oil Lubricated
- For Radial Load
- Lower
- Single Row Ball
- Oil lubricated
- For Radial and Thrust Load
- Requires Overload Protection to be Included in Control Panel
- Class F Insulation
- Single-Phase
- NEMA L
- Start & Run Capacitor (Required in Panel or as a Kit)
- 230 Volts @ 60 Hz
- 1,750 RPM
- Oil Filled
- 3-Phase
- NEMA B
- 200/230 & 460 Volts @ 60 Hz
- 1,750 RPM
- Oil Filled
- Normally Open Included
- Requires Relay in Control Panel
- Normally Closed Included
- Requires Relay in Control Panel
- Additional Cord
- Tungsten Carbide Seal
- Slide Rail Coupling
Manufacturer:
Champion Pump
Stock Quantity: In Stock
Delivery: Ships in 2-3 Business Days
Please use the "Request a Quote" form
| Model |
HP |
Voltage |
Phase |
RPM |
Max.
AMPS |
Locked
Rotor Amps |
NEMA
Code |
Cord
Size |
Cord
Type |
Cord
Length |
Pump
Weight |
| CP4NC4524 |
4.5 |
230 |
1 |
1,750 |
26 |
59 |
A |
10/4 |
SO |
40' |
287 LBS |
| CP4NC4534 |
4.5 |
200/230 |
3 |
1,750 |
18.2 |
56 |
E |
10/4 |
SO |
40' |
280 LBS |
| CP4NC4544 |
4.5 |
460 |
3 |
1,750 |
9.1 |
28 |
E |
10/4 |
SO |
40' |
280 LBS |
| CP4NC7524 |
7.5 |
230 |
1 |
1,750 |
39 |
96 |
A |
10/4 |
SO |
40' |
315 LBS |
| CP4NC7534 |
7.5 |
200/230 |
3 |
1,750 |
26.8 |
80 |
D |
10/4 |
SO |
40' |
309 LBS |
| CP4NC7544 |
7.5 |
460 |
3 |
1,750 |
13.4 |
40 |
D |
10/4 |
SO |
40' |
309 LBS |
| CP4NC11334 |
11.3 |
200/230 |
3 |
1,750 |
28 |
126 |
D |
10/4 |
SO |
40' |
340 LBS |
| CP4NC11344 |
11.5 |
460 |
3 |
1,750 |
14 |
63 |
D |
10/4 |
SO |
40' |
340 LBS |
| CP4NC15034 |
15 |
230 |
3 |
1,750 |
38 |
160 |
D |
10/4 |
SO |
40' |
399 LBS |
| CP4NC15044 |
15 |
460 |
3 |
1,750 |
19 |
80 |
D |
10/4 |
SO |
40' |
399 LBS |

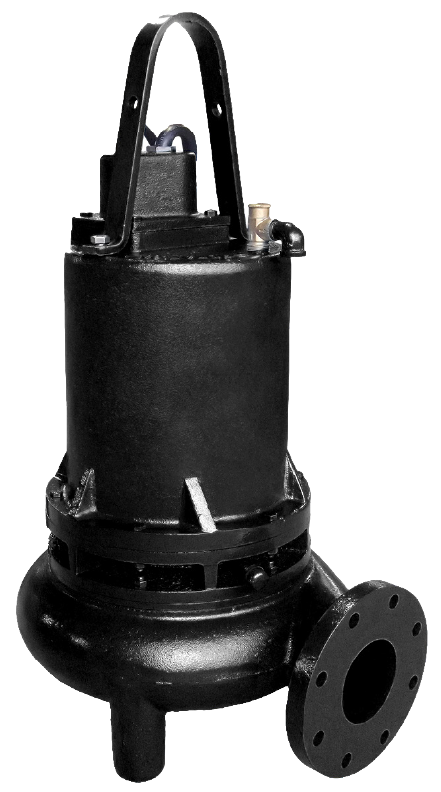

CP4NC Series Pump
LR-235651
