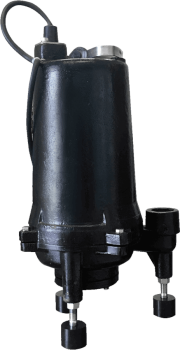

Champion Grinder Pump - 1HP - 230V - (42 gpm & 55 foot head) - 2 Inch Discharge - Internal Cap. Start - Float Included

SKU: CPG1022A-D2

Price: $1,209.99

Weight: 78.00 lb
Stock Quantity: In Stock

Delivery: Ships in 2-3 Business Days

1 HP Grinder Pump & HF2OU20F2 20' Float Switch

Easy to install, rugged, heavy duty, cast iron, 1 HP grinder pump that have a 2” vertical discharge and grinds sewage into a slurry and will help reduce clogging found in various wastewater applications.

The grinder pump produces capacities up to 42 gpm with heads up to 55 feet.

    Some of the other grinder pump features:
  • Single Phase
    • 1 HP @ 230 V 1-Phase @ 6.5 AMPS
  • 140 Degrees F. (Intermittent)
  • 2” Vertical Discharge
  • 20’ Cord
  • Start component
    • Internal (no control panel required)

PDF Grinder Pump Spec Sheet

Grinder Pump Features and Benefits

  • Flows up to 42 GPM and Heads up to 55’ TDH
  • High efficient, oil filled motor with upper and lower ball bearings and thermal overload protection. Provides maximum motor cooling, which helps the pump last longer.
  • Cutter Technology
    • The shredding ring and radial cutter shall be constructed of 440 SST (Rockwell 56-60) reversible cutter assembly. With 24,000 cuts per second and 1.5 million cuts a minute. Combined with a cast iron vortex impeller, which helps provide you a superior pump that prevents overloading and also prevents the pump from clogging
  • Power Cord
    • Sealed entry, quick-disconnect power cords, 20’ with a plug. This design allows the pump to be easily replaced in the field and prevents water from entering the motor housing through a cut cord
    • Piggy-Back switch design that allows the pump to be operated manually by overriding the switch. Pump and switch can easily be diagnosed over the phone
  • Discharge:
    • 2” NPT. Vertical
  • Liquid Temperature:
    • 140 Degrees F. (Intermittent)
  • Motor Housing:
    • Cast Iron
  • Volute:
    • Cast Iron
  • Impeller:
    • Cast Iron/Vortex
  • Seal Plate:
    • Cast Iron
  • Shaft:
    • 416 Stainless Steel
  • Shaft Seal:
    • Type 21 Carbon Ceramic, Buna-N-Elastomer, 300 Series Stainless Steel Hardware
  • Bearing (Upper & Lower):
    • Single Row, Ball, Oil Lubricated
  • Hardware:
    • 300 Series Stainless Steel
  • O-Rings:
    • Buna-N
  • Cord:
    • 20’ With Plug. UL/CSA (SJOW) 14/3 (.375 OD). Quick disconnect pin terminals.
  • Motor (Single Phase):
    • 3450 RPM. 60 Hz, NEMA L, Includes overload protection in the motor, Oil filled, Class F, Capacitor start/capacitor run.
