Non-Clog - 8" Discharge - 36 to 48 HP - 3" Solids

SKU: CP8NC Series

  • PDF Files
  • Catalog Sheet
  • Specification Sheet
  • Head
  • Up to 76'
  • Flow
  • 3,800 GPM
  • Discharge
  • 8" 125 Pound Horizontal Flange
  • Liquid Temperature
  • 104°F (40°C) Continuous
  • Volute
  • Cast Iron ASTM A-48 Class 30
  • Wear Ring
  • Bronze
  • Motor Housing
  • Cast Iron ASTM A-48 Class 30
  • Seal Plate
  • Cast Iron ASTM A-48 Class 30
  • Impeller
  • Design
    • 3 Vanes Closed with Vanes on Back Side
  • Material
    • Cast Iron ASTM A-48 Class 30
  • Shaft
  • 416 Series Stainless Steel
  • Square Rings
  • Square Shape Buna-N
  • Paint
  • Air Dry Enamel
  • Water Based
  • Seal
  • Design
    • Double Mechanical
    • Oil Filled Chamber
  • Material
    • Silicon Carbide Outboard Seal
    • Carbon Ceramic Inboard Seal
    • Buna-N Elastomer
    • Stainless Steel Hardware
  • Hardware
  • 300 Series Stainless Steel
  • Diaphragm
  • Buna-N
  • Cord Entry
  • 25' Cord
  • Sealed Against Moisture
  • Bearings
  • Upper
    • Single Row Ball
    • Oil Lubricated
    • For Radial Load
  • Lower
    • Single Row Ball
    • Oil Lubricated
    • For Radial and Thrust Load
  • Motor
  • NEMA B
  • 3-Phase
  • 230 & 460 Volts @ 60 Hz
  • 1,150 RPM
  • Oil Filled
  • Requires Overload Protection to be Included in Control Panel
  • Moisture Sensor
  • Normally Open Included
  • Temperature Sensor
  • Normally Closed Included
  • Optional Equipment
  • Impeller Trimming
  • Additional Cord
  • Tungsten Carbide Seal
  • Slide Rail Coupling

Manufacturer: Champion Pump

Stock Quantity: In Stock

Delivery: Ships in 2-3 Business Days

Please use the "Request a Quote" form

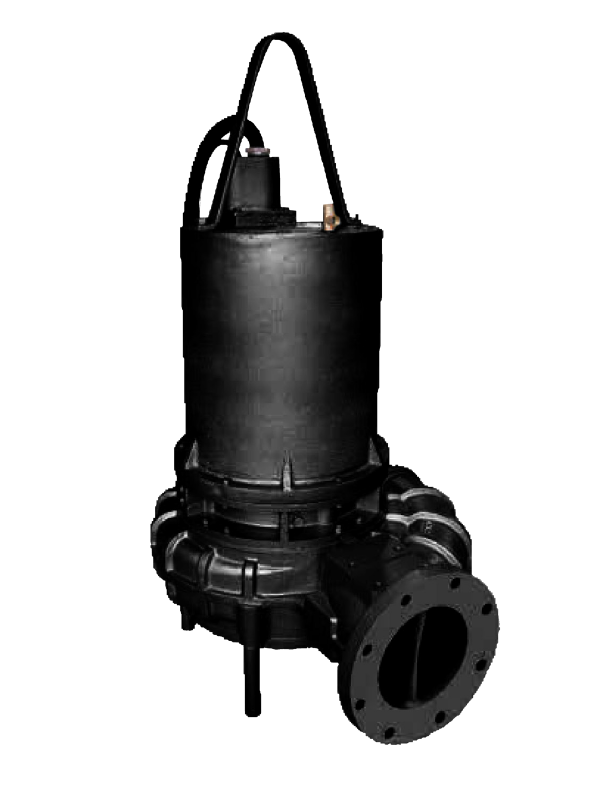

Champion Non-Clog CP8NC Series

Click to Enlarge

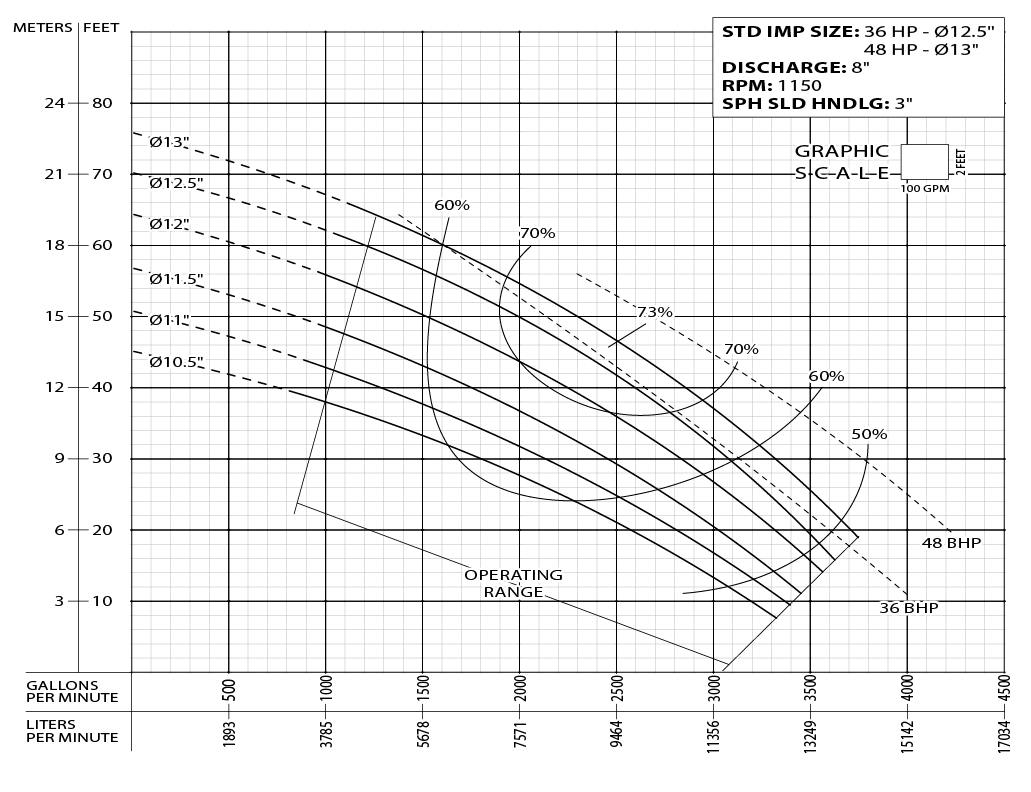

Champion Non-Clog CP8NC Series Pump Curve

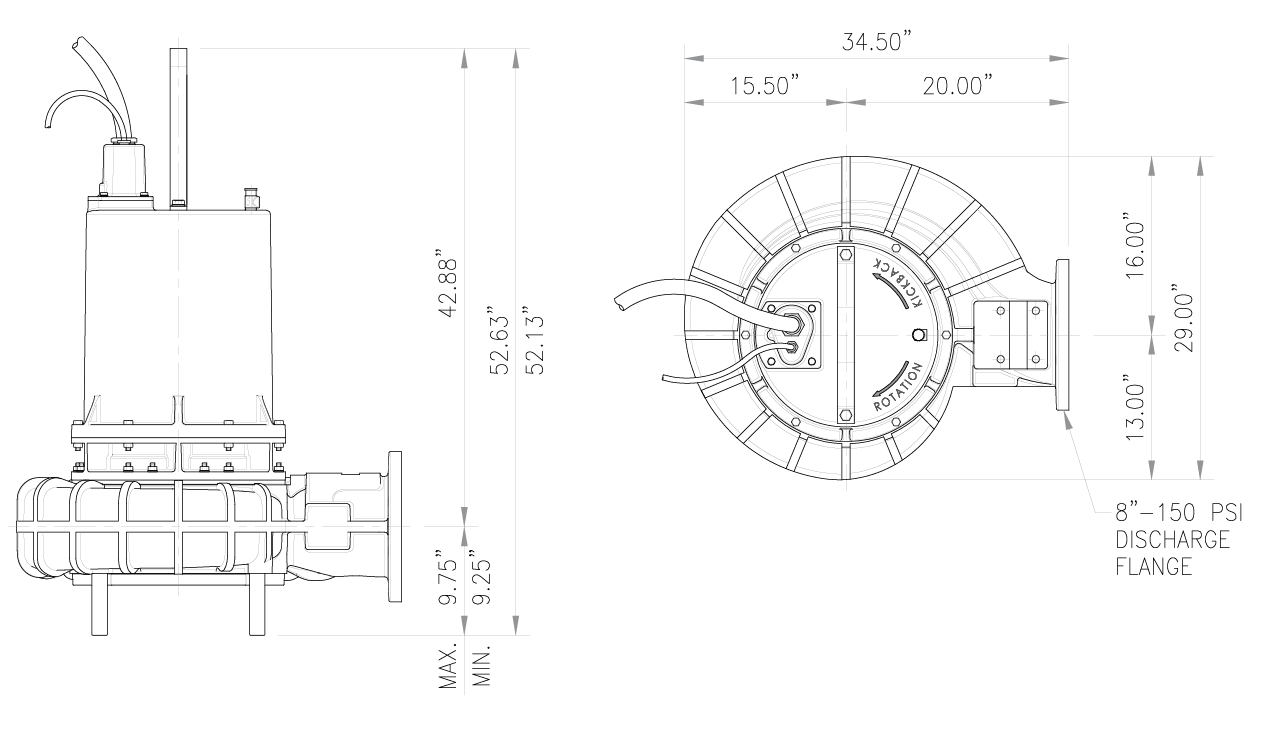

Champion Non-Clog CP8NC Series Dimensions
Model HP Voltage Phase RPM Max.
AMPS		 Locked
Rotor Amps		 NEMA
Code		 Cord
Size		 Cord
Type		 Cord
Length		 Pump
Weight
CP8NC36036 36 230 3 1,150 90 434 E 2/3 3G 25' 928 LBS
CP8NC36046 36 460 3 1,150 45 217 E 2/3 3G 25' 928 LBS
CP8NC48046 48 460 3 1,150 65 290 E 2/3 3G 25' 986 LBS
