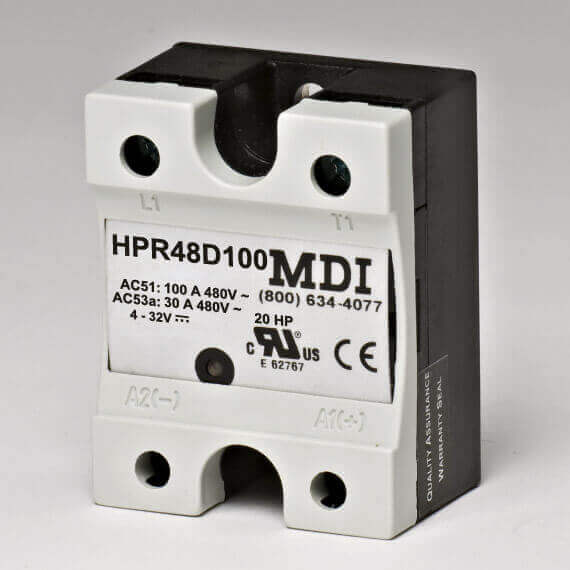

HPR Solid State Relay - 100 AMP - Single Pole - DC Control

SKU: HPR48D100

Price: $110.49

Weight: 0.50 lb

Delivery: 1 - 6 weeks

The industrial, 1-phase relay with anti-parallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The relay can be used for resistive, inductive and capacitive loads. The zero-switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase control. The built-in varistor secures transient protection for the heavy industrial applications, and the LED indicates the status of the control input. The clip-on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm².

PDF Data Sheet

  • Competitor Crosses:
    • Carlo Gavazzi:
      • RM1A23D100
      • RM1A48D100
  • Input Range: 4 - 32 VDC
  • Operational ratings:
    • AC51: 100 Arms & 480 VAC
    • AC53a: 30 Arms & 480 VAC
  • Motor Ratings:
    • 230 VAC: 7.5HP
    • 400 VAC: 15HP
    • 480 VAC: 20HP
  • Non-repetitive voltage: 1200 Vp
  • Opto-insulation: > 4000 VACrms
  • Line & Load accepts: 10-14 AWG
  • Includes:
    • Zero switching AC SSR
    • Direct copper bonding (DCB) technology
    • LED indication
    • Built-in varistor 480V
    • Clip-on IP 20 protection cover
    • Self-lifting terminals
    • Housing free of molding mass
  • Fusing / Short Circuit Protection
    • Co-ordinationType 1 (UL508): Suitable For Use On A Circuit Capable Of Delivering Not More Than 100,000 A rms Symmetrical Amperes, 600 Volts Maximum when Protected by Class J Fuses. Use Fuses Only. Tests with Class J fuses are representative of class CC fuses
      • Max. 80A, 600 VAC Class J
      • Max. 60A, 600 VAC
      • Class HSJ60
  • Co-ordination Type 2: Semiconductor fuses
    • Ferraz Shawmut (Mersen)
    • 6.9zz CP gRC 22x58/100
    • 22 x 58
